Power converter installation

Military Amphibious Marine Tactical Equipment
ISO 9001 - international standard certified

Power converter installation

Add to list (wish/quote request)

Go to (view)

Product details

Brand: SeaCraft
Unit measure: pcs

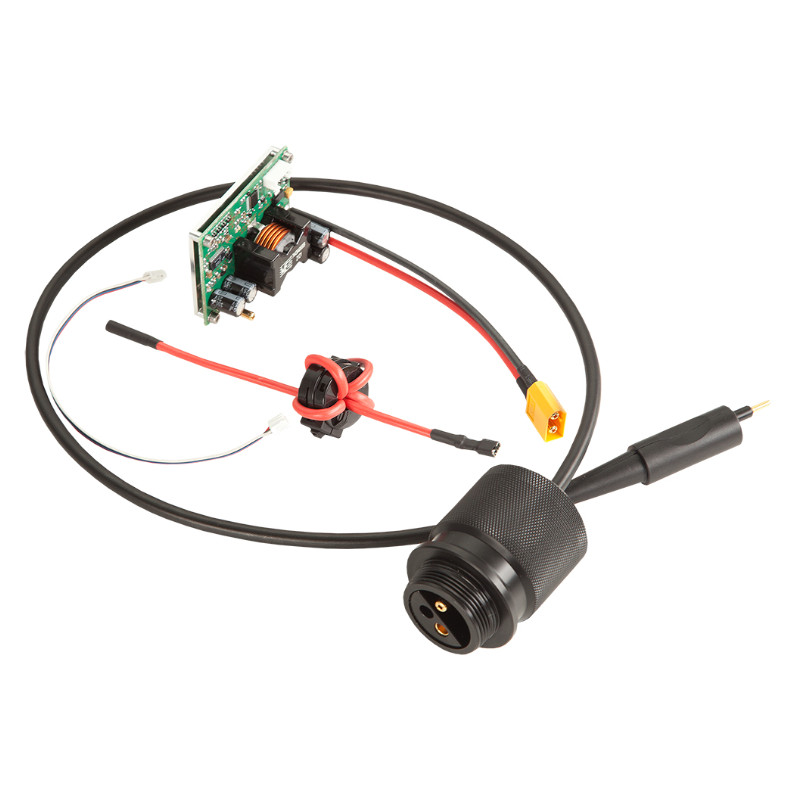

Power converter with E/O cable output (70 cm) – installed in new Seacraft scooter E/O power outlet allows to use Seacraft scooter, as a big battery pack - for heating system, or lighting.

Care and Storage Instructions

After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
Store in a well ventilated dry area away from direct sunlight

Specifications

DM1701 POWER CONVERTER

Power supply 12 V*
Maximum power allowed from the output 140 W

UM1093 E/O CABLE OUTPUT

Lenght (cable output with adapter) 700 mm
Weight 135,2

* During the dive between 5 levels of voltage output, tuned to correspond with20%,40%,60%,80%and 100% heatingpower of 12V
systems. It corresponds with voltage steps of 6.0V, 7.5V, 9.4V, 10,7V, 12V.
In case of using a lighting system-a 12Voutput allows for connectingmost of 14,4Vand11,1V lightheads.

Certifications

Our products are manufactured using highest industrial and military standards, what is proven by following certifications:

AQAP 2110 : NATO requirements for Quality Assurance in design, development and manufacturing
ISO 9001 : Quality management system
ISO 14001 :Environmental management system

Our NCAGE code is 99QRH

All of Seacraft batteries are UN38.3 certified.

Our products are compliant with:

Machinery Directive 2006/42/EC
Low voltage Directive EMC 2014/30/UE
PN-EN ISO 12100
PN-EN ISO 13857
PN-EN 349+A1
PN-EN 1037+A1
PN-EN 60204-1
