MK-IV 3-Diver Air Intercom (US Navy Approved)
Share
Share
Share
Share
.jpg)
Low stock. Contact us.
Add to list (wish/quote request)
Go to (view)
Product details
Brand: OTS
Military 3 Diver Intercom, Headset, Charger and Battery

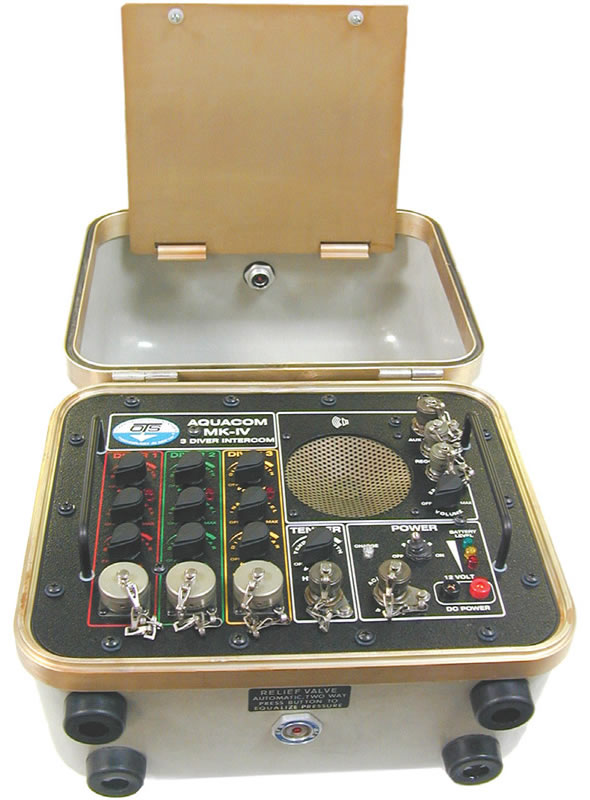

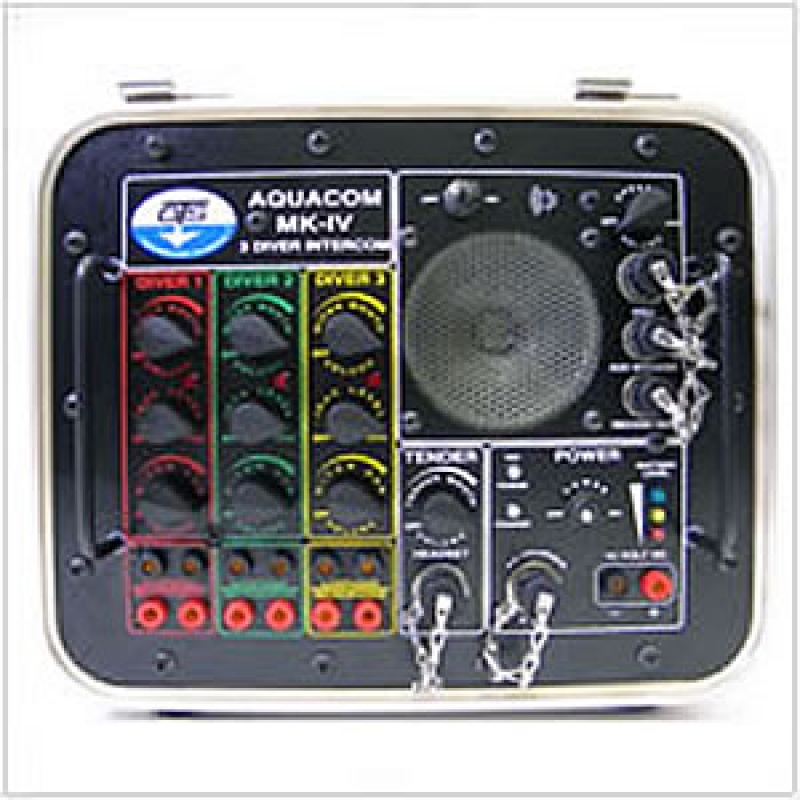

The MK-IV Three Diver Air Intercom represents state-of-the-art technology and innovation second to none. Military divers throughout the world have been waiting for a product of this quality. This robust three diver air box has features specifically designed for the military diver. First and foremost, a third channel designed for the “Standby Diver.” This allows the safety diver will be on line with the other two working divers. The Auxiliary output receptacle is designed to operate with an optional helium unscrambler.
FEATURES:
- Heavy Duty MS connectors and Knobs
- Individual Volume Controls for Tender and Each Diver
- Pre-Amplified Military Style Microphone Circuit (Front Panel)
- Hawker Cyclon 12 Volt 5.0 Ah Rechargeable 6-Cell Battery Pack
- LED Low Battery Indicators with Low Battery Tone Alarm
- Heavy Duty - Weather Resistant Housing
- State-of-the-Art Circuitry
- Divers protected by GFCI and Transformer isolation
Care and Storage Instructions
- After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
- Store in a well ventilated dry area away from direct sunlight
Specifications
MK-IV - Aquacom® 3 Diver Intercomm Specifications
| Input Power | 12V External Source; internal 12 volt rechargeable battery; 90-264 VAC, 47-63 Hz |
| Battery Type/Life | Hawker Cyclon 12V, 5.0Ah sealed lead-acide 6 cell battery pack. 14 hours, continuous use (assuming a full charge). Charge time for batteries is 3-5 hours. |
| Number of Divers | One, Two, or Three divers with independent controls |
| Output Power | 16 watts max (4 per diver and 2 watts each for tender headset and panel speaker). |
| Freqency Reponse | 300-4,000 Hz |
| Inputs/ Ouputs | Diver umbilicals (3), tender headset, AC/Charger power, 12 Volt DC power, lines out (line out is 1 volt which is standard level), remote speaker, auxilary |
| Connector Types | MS (tender headset, diver umbilicals, AC/Charger power, Auxilary, line out, remote speaker) double banana (DC Power) |
| Mic Input Types | Dynamic or Power mic (switch selectable) |
| Operating Temperature Storage Temperature | 0°C to 60°C (32°F to 140°F) -10°C to 60°C (14°F to 140°F) |
| Protection Circuits | GFCI: thermal breaker (transformer isolate divers from shock hazards) |
| Battery Level Indicator | 3-stage LED |
| Cabinet | Molded composite |
| Front Panel | .080 stainless steel, powder coated |
| Size | 9.0" (cover off), 15.0" (cover on), Width: 13.75", Depth: 12.5", Weight: 28 lbs |
