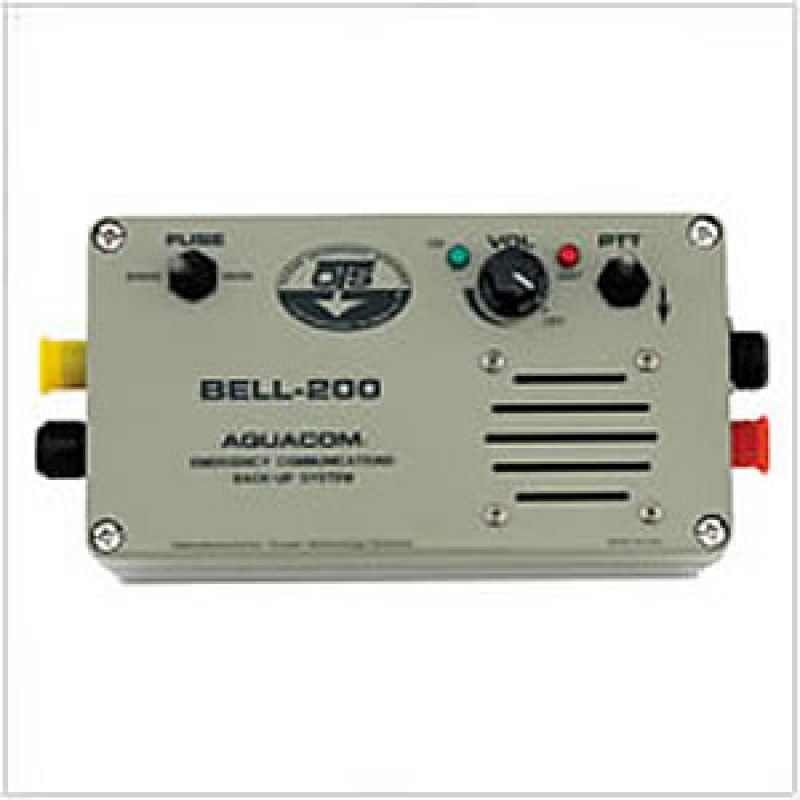

Aquacom® BELL-200 Backup System
Share
Share
Share
Share
Low stock. Contact us.
Add to list (wish/quote request)
Go to (view)
Product details
Brand: OTS
Bell back up system (25 kHz transducer). Transducer included (70 watts).Care and Storage Instructions
- After use, wash in fresh water and allow to dry in a well ventilated area out of direct sunlight
- Store in a well ventilated dry area away from direct sunlight
Specifications
Bell-200 Specifications
| Range | 200m-6000m* |
| Frequency | 25 kHz upper sideband (optional 8.0875 kHz upper sideband available) |
| Output Power | 70 watts |
| Frequency | available |
| Automatic Gain | 100 dB dynamic range |
| Controls | Volume, Push-to-Talk, Fuse (spare/main), Power On/Off. |
| Speaker | Heavy duty front panel or optional headset with boom microphone |
| LEDs | Green for Power ON, Yellow for Xmit. |
| Operating Depth | Transducer: 2000 fsw (Bell-200 is for dry environments only) |
| Supply Voltage | 24 VDC @ 10 amps, minimum |
| Dimensions | Height: 4.75", Width: 10.25" (OVL width with knobs & connects), Depth: 4.40" Weight: 4.5 lbs. |
